SUBQUERIES EXAMPLES:


SUBQUERIES EXAMPLES:

·        SUB QUERIES are alternate for INNER JOIN. It allows to extract data from multiple tables.

System Fields:

             Can be called as system variables also
Ø SAP provided once 171 system variables.

SY-SUBRC:
             system variable for Error handling if it is equals to zero. There is no error  , not equal to zero means error.

SP-ULINE:
             it draws underline
SY-VLINE:
             draw vertical line.
SAP GUI:
             heights is 80 lines
             width is 255 characters

DEMO ON SUBQUERIES

Ø      Select SE 38, Enter Program: zsubqua_demo
Ø      Define attributes
Ø      Maintain attributes of Subqueries
Ø      Save details

Requirements:

·        In selection-screens, entering sales order no
·        Entering sales order no i.e

Sales order

HEADER DATA




·        Output is sales order no entered ands displays item and materials having in each Sales Order
·        Entering header data
·        Displaying header data and item data
HEADER DATA                         ITEM DATA


SALES ORDER NO
ITEM
MATERIAL




NO STANDARD PAGE HEADING:
             Is a syntax, suppress title, defined in attributes.
Line size 80:
             Means from 255 characters width upto 80 characters width using for data display.

MESSAGE-ID:
             Means message class, this is for Error-Handling. Transaction code is se91.
Ex: message-id zemdemo
Prog:
Ø      Report zsubqua_demo NO STANDARD PAGE HEADING
      LINE-SIZE 80
       MESSAGE-ID ZEMDEMO.
Ø      Click on zemdemo to create.
·        It displays a dialogue box
Ø      Select ‘YES’ to create
Ø      Save
Ø      Select ‘MESSAGES
Ø
·        It displays
·        Message class have message number
·        This range starts from 000 and ends with 999
·        Each number we can assign one error
·        Total 1000 messages we can assign.
Ø      Select message number 000 and assign error message:
Ex: 000                                        sales order num enter does not exists
Ø      Save and back for f3
Ø      Maintain tables work area. Which  table we are going to use VBAK ,VBAP because there is no master table
TABLES: VBAK,
                 VBAP.

Ø      Maintain selection screen logic. Am I entering one value or ranges values, we are entering one value so selection-screen logic is ‘parameters’.

PARAMETERS: SALES TYPE VBAK-VBELN.

Ø      Declare internal table as per output screen, means how many fields? three(3) fields:
·        Now I am going to introduce one more.. note down

TYPES: BEGIN OF FS,

·        FS is a field string and it is a datatype
·        How can u say it is a datatype, bcoz by seeing “TYPES’ keyword
·        We have two options two referring fields, those are: (i)Fields From Table, and (ii)Fields From Data Elements

·        If u refer field from tables means referring dependent object
Ex:
             Data: begin of I_ITAB OCCURS 0,
                      VBELN TYPE KNA1-KUNNR,
                      POSNR TYPE KNA1-KUNNR,
                      MATNR TYPE KNA1-MATNR,
           END OF I_ITAB.

·        If u refer field from table means referring dependent object
·        If u refer data element from table means referring Independent object. Whenever independent object refer, performance can be improved.
·        Whenever Data Element referred in referring data type so type keyword or like keyword? type keyword right because referring data type. So keyword is ‘type’ keyword.
             VBELN TYPE VBELN_VA,  ”Data elements of VBELN.
             POSNR TYPE POSNR_VA,
             MATNR TYPE MATNR, “item
             END OF FS.

·        FS is Field String, FS is a Data type, and FS is to maintaining three fields.
·        whenever data element referred so keyword is TYPE
·        Declare Internal Table work area and Body with reference of Data type FS .
·        Will you declare work area and body as a data object or data type? We have to declare work area  as a Data Object because to internal table have to hold data
·        To hold data memory required
·        Data object keep memory multiple records

DATA: WA TYPE FS. “ fs is referring data object.

·        Here work area and field string are same bcoz both properties are same



Work area(WA)

=

Field string(FS)

·        Now body it holds multiple records  then it is a table format but not line format.




WORK AREA BODY

·        Body is a table format. Now data object is body.
DATA: BODY TYPE TABLE OF FS.
·        This internal table with reference of Field string.
·        Real time scenario this is only useful
Ø      SQL statement using Sub Query
Ø
SELECT VBELN POSNR MATNR FROM VBAP
             INTO TABLE BODY[]
WHERE VBELN = SALES
AND EXISTS
( SELECT VBELN FROM VBAK ) àhere execution starts from here means “select 1000 sales order FROM Header Data table
·        Make it I entered input sales order no 1000
·        Always analyze  subquery from last two i.e. select 1000 sales order from header data table
·        If 1000 exists in header data table then extract its item data from  item data table and keep that extracted data in body where clause as per selection screen(parameter).
·        Initially system can check header data details
·        If header data exists then it can start to extract related item data
·        Now data is in Body.
Ø      If data is not in body
IF SY-SUBRC NE 0. “In case of error.

Ø      Means sales order no doesn’t exist
MESSAGE E000.
Ø
·        MESSAGE is a syntax and E for Error. And message no 000
ELSE. “IF SALES ORDER EXISTS.

Ø      logic to maintain column heading
WRITE:/ SY-ULINE(80).

·        It keeps underline upto 80 characters.
WRITE: /1 SY-VLINE, 2 ‘SALES ORDER NO’,
               40 SY-VLINE, 41 ‘ITEM’,
               60 SY-VLINE, 61 ‘MATERIAL’,
               80 SY-VLINE.
WRITE:/ SY-ULINE(80).
·        From 255 character width we are using 80 character
·        1st character vertical line
·
Ø      Processing logic to display output.
LOOP AT BODY[] INTO WA.
WRITE: /1 SY-VLINE, 2 WA-VBELN,
             40 SY-VLINE, 41 WA-POSNR,
             60 SY-VLINE, 61 WA-MATNR,
            80 SY-VLINE.
END LOOP.
ENDIF.
WRITE: / SY-ULINE(80).
Ø      After data printed release data from int. table
CLEAR WA.
REFRESH BODY[].
Ø      Save and activate.
·        Internal table have 3 syntax: 91)with header line (2) without headerline (3) with reference of field string(FS).

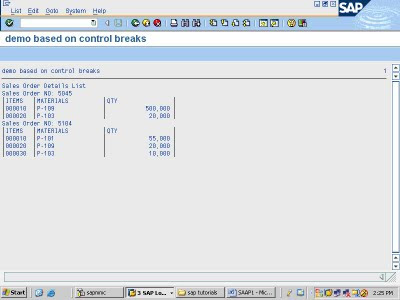

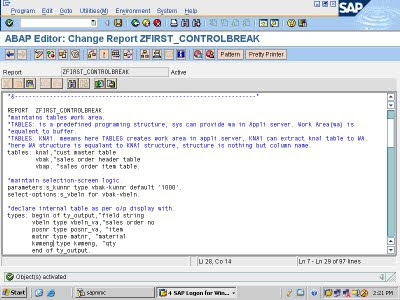

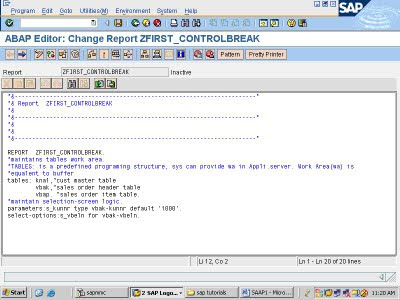

CONTROL BREAKS



O/P IS













o/p is



































o/p is



































Add caption

















1)      TICKET: (REQUIREMENT)IS




















We have to display like below



*&---------------------------------------------------------------------*
*& Report  ZASSIGNMNT_CONTROLBREAK
*&
*&---------------------------------------------------------------------*
*&
*&
*&---------------------------------------------------------------------*

REPORT  ZASSIGNMNT_CONTROLBREAK.
*maintain table work area.
tables: vbrk,      "Billing Document: Header Data
        vbrp.      "bill doc.item table

*maintain selection-screen logic.
parameters: kunag type vbrk-kunag default '1000'.  "CUSTOMER NO

select-options: vbeln for vbrk-vbeln. "BILL DOC. NO
*SAVE AND GOTO FROM MENU BAR
*CHOOSE TEXT-ELEMENTS
*CLICK ON SELECT-TEXTS
* THEN U WILL GET LIKE THIS





















*SAVE AND ACTIVATE.

*declare int. table as per o/p display WITH REF OF FIELD STRING
types:begin of ty_output,
      KUNAG TYPE KUNAG,     "VBRK- CUSTOMER NO.
      VBELN TYPE VBELN_VF,  "VBRK- BILL DOC ORDER NO
      posnr type posnr_vf,  "vbrp- table for item.
      matnr type matnr,     "vbrp- table FOR MATERIAL
      NETWR TYPE NETWR_FP,  "VBRP- TABLE PRICE
      WAERK TYPE WAERK,     "VBRK CURRENCY
      END OF TY_OUTPUT.

*DECLARE INT TABLE WORK AREA AND BODY WITH REFERENCY OF FIELD STRING i.e ty_output.
DATA: WA TYPE ty_output,
      itab like table of wa.

*open sql statement
SELECT VBRK~VBELN
       VBRK~WAERK
       VBRP~POSNR
       VBRP~MATNR
       VBRP~NETWR
*EXTRACTED DATA FROM TABLES VBRP,VBRK from Database Server

       INTO
       TABLE ITAB[]        "EXTRACTED DATA STORED INTO BODY ITAB[]
*providing inner join between VBRP & VBRK
         FROM
           VBRP
             INNER JOIN
               VBRK
               ON
               VBRK~VBELN = VBRP~VBELN
*because of selection-screen option parameters WHERE clause should be maintained
WHERE VBRK~KUNAG = KUNAG "CUSTOMER NO

*BCOZ OF SELECT-OPTIONS 'IN' CLAUSE SHOULD BE MAINTAINED
AND
VBRK~VBELN IN VBELN.   "BILL DOC.NO.

*now all the data extracted from DB SERVER and stored into body ITAB[]
*so data is in body so we have to transfer data from body to wa.


*SORT THE DATA IN BODY
IF NOT ITAB[] IS INITIAL.
SORT ITAB[] BY VBELN.

*TRANSFER THE DATA FROM BODY TO WORK AREA.
CLEAR WA. "CLEAR THE INT.TABLE WA.
LOOP AT ITAB INTO WA.

*APPLY FIRST CONTROL BREAK i.e. AT FIRST.
AT FIRST.
WRITE: / 'BILL DOCUMENT LIST'.

*PROVIDE AT WITH ENDAT.
ENDAT.

*PROVIDE 2ND CONTROL BREAK i.e at new.
AT NEW VBELN. "BILL DOC.NO.
   WRITE:/ 'BILL DOCUMENT NO:', WA-VBELN.

*  LOGIC TO MAINTAIN COLUMN HEADINGS
   write:/ sy-uline(70).
   WRITE:/1 SY-VLINE, 2 'ITEMS',
        10 SY-VLINE, 11 'MATERIAL',
        30 SY-VLINE, 31 'PRICE',
        50 SY-VLINE, 51 'CURRENCY',
        60 SY-VLINE.
   WRITE:/ SY-ULINE(70).
ENDAT.

*logic to display bill document lists under respective column headings.
    WRITE:/1 SY-VLINE, 2 WA-POSNR,
           10 SY-VLINE, 11 WA-MATNR,
           30 SY-VLINE, 31 WA-NETWR,
           50 SY-VLINE, 51 WA-WAERK,
           60 SY-VLINE.
    WRITE:/ SY-ULINE(70).

*APPLLY THIRD CONTROL BREAK AT ENDOF.
AT END OF NETWR.
*   NETWR.
   SUM.
     WRITE:/ 'TOTAL AMOUNT:', WA-NETWR.
ENDAT.

AT LAST.
 WRITE:/ 'GRAND TOTAL:', WA-NETWR.
 SUM.
 ENDAT.


*LOOP WITH ENDLOOP
ENDLOOP.
*IF WITH ENDIF.
ENDIF.
